• CFD Prediction of Re-entry Heating

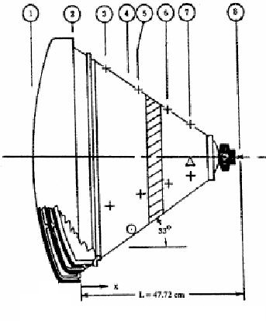

Fire II re-entry capsule at 35 km altitude

CFD simulation with non-equilibrium thermo-chemistry

3D unsteady flow simulation at Mach 16

• HSTDV forebody simulation at Mach 6.5

HSTDV forebody simulation at Mach 6.5

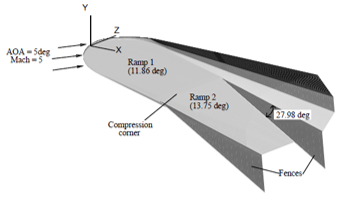

HSTDV forebody with bi-curvature nose

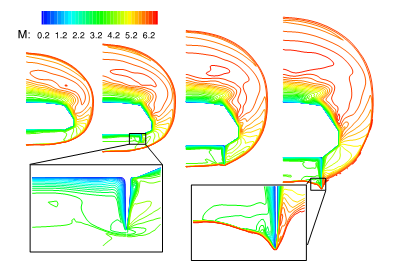

3D shock structure around forebody

• Three-dimensional flow analysis of ISRO intake

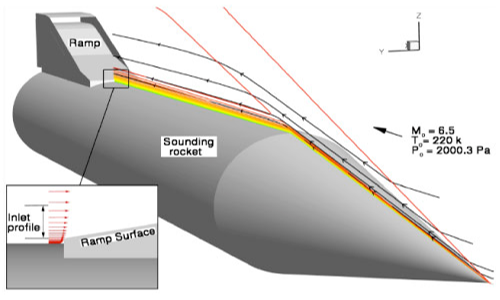

Scramjet module attached on rocket

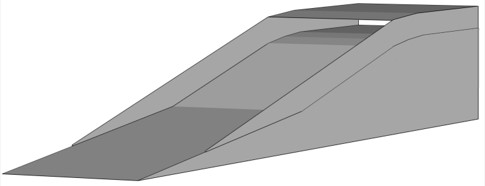

Intake Geometry

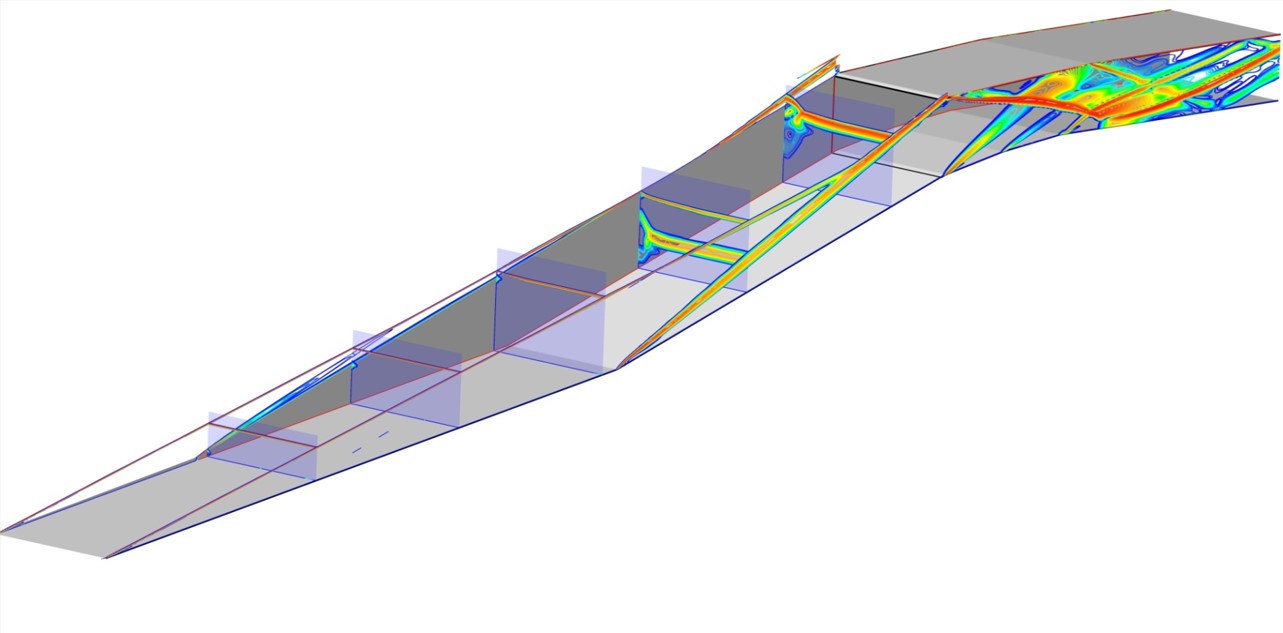

Complex shock structure on side wall

Flow separation inside intake duct
